Awarded "New Excellent Product (NEP)"
(No. NEP-MOCIE-2006-089)
Features
For enhancing repeatability and accuracy especially in low concentration, it is Gas permeable membrane type with 3 electrodes (Polarographic) method which is gaining concentration value of residual chorine by microprocessor to acquire deduction current value proportional with residual Chorine.
By using automatic washing device ‘water jet’, it is easy to clean the sensor’s surface automatically and cyclically and can get stable measuring data.

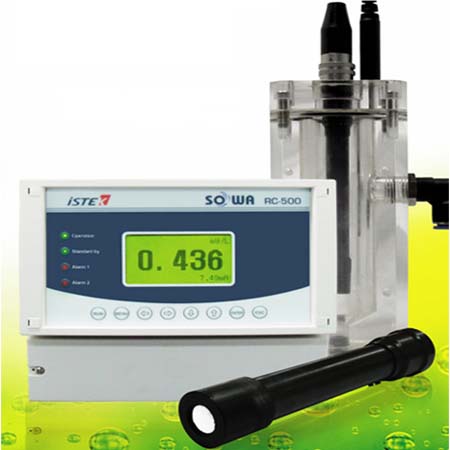

Our RC-500 is an intelligent residual chlorine analyzer that makes extensive use of microprocessors and can measure pH and temp simultaneously. Its design is based on the know-how gained through istek’s technical know-how to minimize an interference of current between RC sensor and pH sensor.
System Consists
1) Controller
- Intelligent microprocessor-based
- Modular devices of power, digital input/output, A/D, D/A converter.
- Convenient use interface
- Automatic sensor self-diagnostic per each module
- Easy and automatic standardize function
- Various output signal (4-20mA DC, RS-232C)
- Time control by Real time clock
2) Flowcell & Sensor
- Gas permeable membrane type with 3 electrodes (Polarographic)
- Polyfluoroethylen membrane transmit the HOCl gas only
- Easily maintained (easy-to-clean) cell construction
- Waterjet cleaning for more effective automatic continuous cleaning
- Low hysteresis of reference electrode with temperature
|
