COD Analyzer

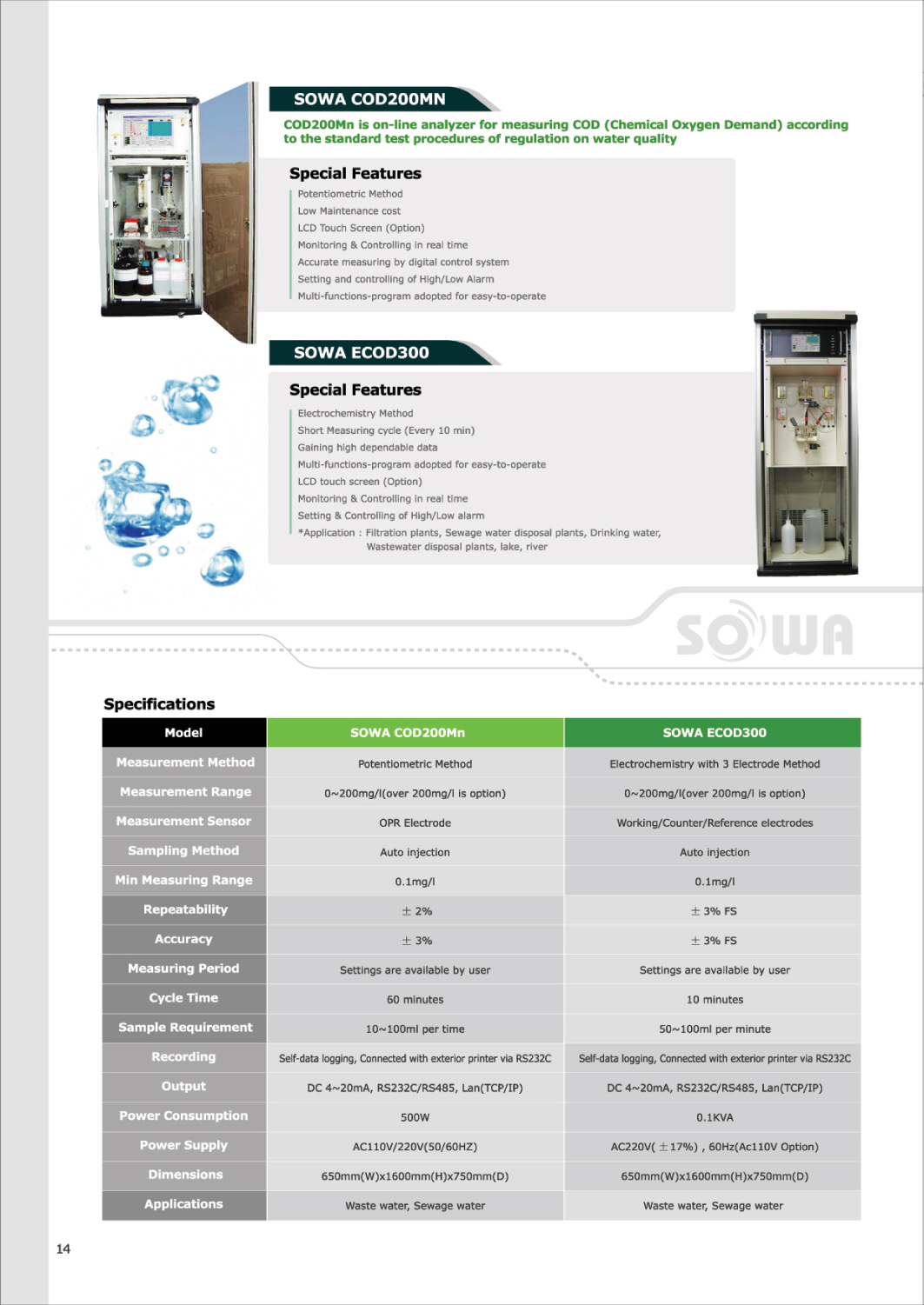

SOWA COD200Mn
COD 200Mn is on-line analyzer for measuring COD(Chemical Oxygen Demands) according to the standard test procedures of regulation on water quality







Special Features

* Potentiometric Method
* Low Maintenance cost
* LCD Touch Screen (option)
* Monitoring & Controlling in real time
* Accurate Measuring by digital contol system
* Setting and controlling of High/Low Alarm
* multi-functions-program adopted for easy-to-operate

* Correcting function

* Correcting proper flow amount by using Na2C2O4.

* Minimizing error rate by injecting accuracy amount of reagents.


Specifications

Measurement Method

Potentiometric Method

 Measurement Range

0 ~ 200 mg/L (Optional for more than 200 mg/L)

Measurement Sensor

ORP Electrode

Sampling Method

Auto Injection

 Min measuring Range

 0.1 mg/L

 Repeatability

  2%

Accuracy

  3%

 Measuring Period

 Setting are available by user

 Cycle Time

 60 min

 Sample Requirement

 10 ~ 100 ml per time

 Recording

 Self data-logging, Connected with exterior printer via RS232C

 Output

 DC 4 ~ 20mA, RS232 / RS485, Lan(TCP/IP)(Option)

 Power Consumption

 500W

 Power Supply

 AC 110V / 220V(50/60Hz)

Dimension

650(W) x 1600(H) x 750(D)mm

 Application

 Waste water, Sewage water.
