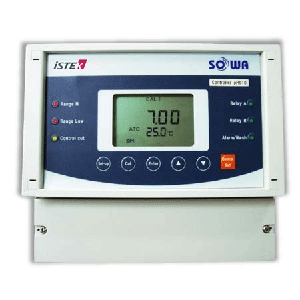

Conductivity Controller
EC 930

* Displays EC and Temp at once
* Hight Limit / Low Limit
* RS232C Connecting with PC





* Microprocessor based on single chip
* Programmable dialogue-Menu for easy operation
* Convenient LCD, LED display (Measure, Calibrate, Data display)
* User password function for protection
* Easy to stop of Relax by "control-cut" function.
* Low maintenance cost, High/Low alarm setting
* Standard serial communication by connectiong with PC(RS232C)
* Sewage & Waste water disposal plant, Filtration, River



 Conductivity

 Salinity

 Range

 0 ~ 199,999us/cm

 0.00 ~ 199.9%

 Resolution

 0.01 / 0.1

 0.1

 Relative Accuracy

 ¡¾0.5%

 ¡¾0.1

 Calibration

 1 Point

 Temperature

 -5¡É ~ 100¡É (Pt 100¼¾¼­)

 Respond Time

 Less than 10 Seconds

 Control Type

 ON/OFF Control (Proportional Control : option)

 Outputs

-Analog output: 4¢¦20mA    -Relay output : Two SPDT Relays

-Alarm : One SPDT Relay    -Serial output : RS232(RS485:option)

 Display

 Dual display of EC and Temperature

Enclosure

 -Full-protection insulated  -Waterproof Rating : IP65

-Material : Polystyrene   -Mounting Method : Wall Mount Type

Power/Dimension

AC 110V /220V (50/60Hz)  /  210(W) X 185(H) X 84(D)mm

 Standard Accessories

 -Instruction Manual        -AC Power Adaptor



 Optional Accessories

 -Conductivity Cell/ATC Probe  –Conductivity Standard Solution

-Holder    –Extra Cable(10~50m)   –Relay Box

-Bracket   –Washing System (Air, Water-Jet, Ultrasonic)



(1) Standard
   - AC / DC Adaptor
   - Instruction Manual

(2) Option
   - Conductivity Cell / ATC Probe
   - Conductivity Standard Solution
   - Holder
(P.P, PVC, STS Etc.)
   - Bracket
('L' Rack Mount, Screw Mount Etc.)
   - Extra
Cable(10~50m)
   - Washing System
 (Air, Water-Jet, Ultrasonic)
   - Relay Box

Conductivity Controller01Conductivity Controller02Conductivity Controller03Conductivity Controller04Conductivity Controller05         ¡ã Holder & Bracket                                  ¡ã Relay Box      ¡ã Cleaning System
