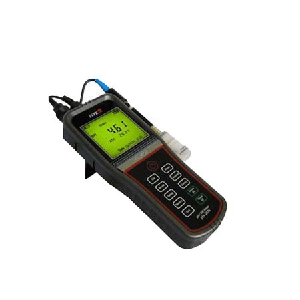

Portable pH Meter
pH-25N

* Backlight Custom LCD
* Short Response time
* Bi-directional RS232C

Portable pH Meter01
Portable pH Meter02




Waterproof(IP66) housing, Backlit custom LCD display
* Fast, accurate and easy to use, RS 232C communication
* Simultaneous display of pH, temp and current time
* Auto(Manual) calibration with choice of buffer(3points)
* Automatic compensation for Temp, Self diagnostics
* Low Battery Alarm, Rechargeable Battery
* Data-log up to 100 Points, Auto power-off
* Certificate CE mark, GD mark, ISO 9001



 pH

  Range

-2.000 to 19.999

  Resolution

 0.001 / 0.01 / 0.1

  Relative Accuracy

 0.002

 Auto-Buffer-Recognition

 pH : 4.00, 7.00, 10.00

 Concentration



  Range

 0.0001 to 19999/

  Resolution

 one least significant

  Relative Accuracy

 0.25% of reading

 Temperature



  Range

 -10 to 110

  Resolution

 0.1

  Relative Accuracy

 0.4

 Millivolts

  Range

 1999.9mV

  Resolution

 0.1mV

  Relative Accuracy

 0.1mV

 Temperature Compensation

 Auto

 Calibration

 Auto (3 Points) / Manual (3 Points)

 Datalog

 100 Points

Print Capability

 Yes

 Display

 Backlight LCD

 Inputs

 BNC, 8PIN(ATC), 7.5V Adaptor

 Outputs

 RS232C (Computer / Printer)

 Power

 Rechargeable Battery/ DC Power Adaptor

 Certification

 ISO9001, CE, GD mark

 Dimension

 220(L) x 80(W) x 40(H), Weight 0.45kg

 Waterproof

 IP66



(1) Standard
   - Combination pH Electrode / ATC Probe
   - Buffer Solution (pH 4.00, 7.00, 10.00) 125ml
   - Rechargeable Battery /DC Adaptor
   - Instruction Manual


(2) Option
   - Buffer Solutions (pH 4.00, 7.00, 10.00) 475ml
   - Electrode Storage Solution
   - Carrying Case
   - Electrode Filling Solution
   - RS232C Interface Cable
   - Exterior Thermal Printer
