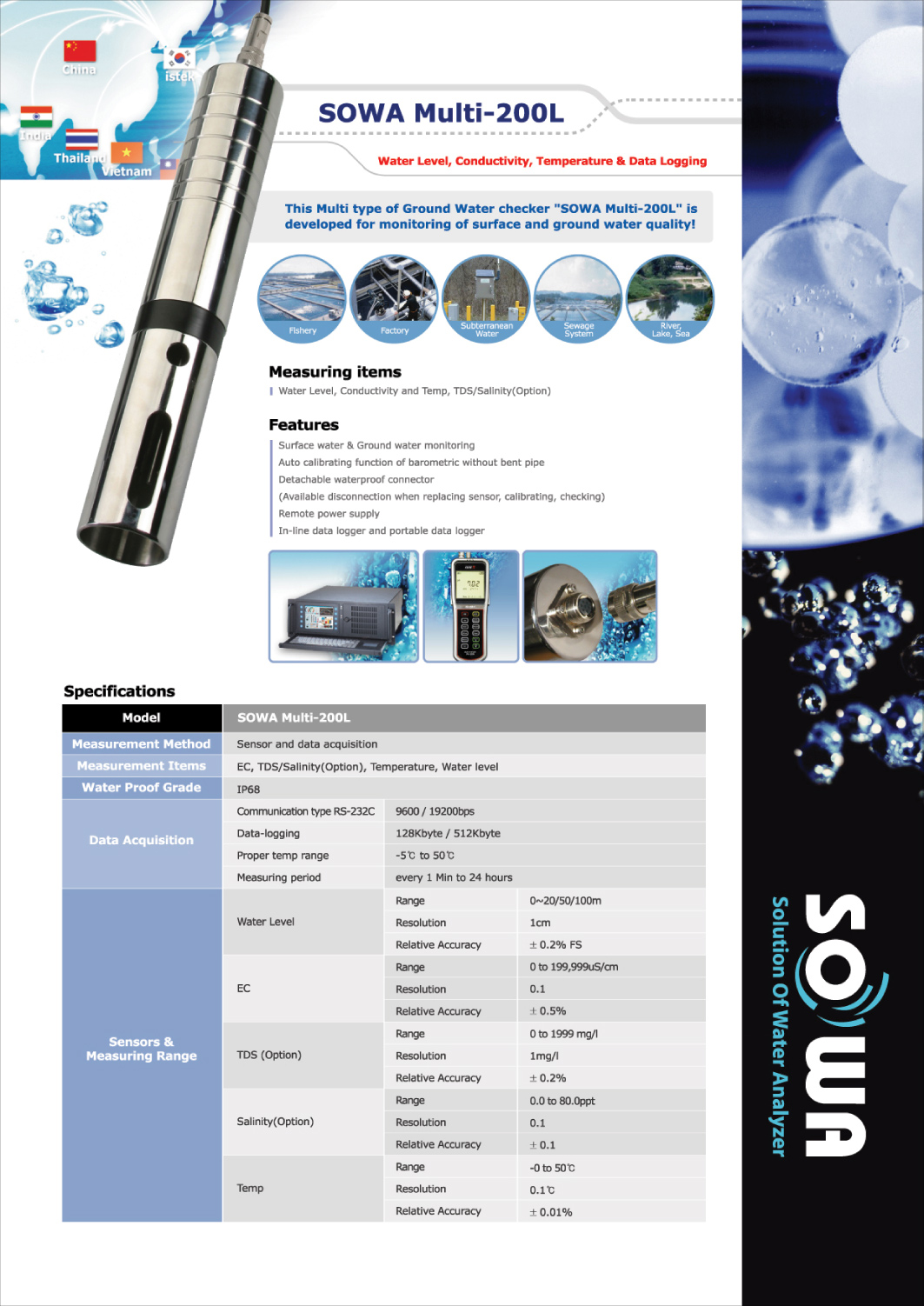

Measuring Item
Level of water, pH, Conductivity and temp, TDS/Salinity(optional)
Feautres
* Surface water & Ground water Monitoring
* Auto calibration Function of Barometric without Bent pipe
* Detachable waterproof connector(Available disconnection when sensor replacing
calibrating, checking)
* Remote power supply
* In-line data logger and portable data logger.
Specifications
|
Model |
SOWA Multi-200L |
|
Measurement Method |
Sensor and Data Acquisition |
|
Measurement items |
pH, EC, TDS/Salinity(Option), Temperature, Water level |
|
Water proof grade |
IP68 |
|
|
Communication
type RS-232C |
9600 / 192000bps |
|
Data Logging |
128Kbyte / 512Kbyte |
|
Proper temp
Range |
-5℃ ~ 50℃ |
|
Measuring period |
Every 1 min to 24 hours |
|
Sensors &
Measuring Range |
Water level |
Range |
0~20/50/100m |
|
Resolution |
1cm |
|
Relative Accuracy |
±0.2%FS |
|
pH |
Range |
-2.00 to 19.99 |
|
Resolution |
0.01 |
|
Relative Accuracy |
±0.02 |
|
EC |
Range |
0 to 199,999us/cm |
|
Resolution |
0.1 |
|
Relative Accuracy |
±0.5% |
|
TDS(Option) |
Range |
0 to 1999mg/L |
|
Resolution |
1mg/L |
|
Relative Accuracy |
±0.2℃ |
|
Salinity(Option) |
Range |
0.0 to 80.0ppt |
|
Resolution |
0.1 |
|
Relative Accuracy |
±0.1 |
|
Temperature |
Range |
-0 to 50℃ |
|
Resolution |
0.1℃ |
|
Relative Accuracy |
±0.01℃ |
|
