Conductivity Meter

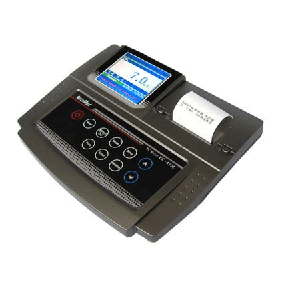

EC-470L
* EC/TDS/Sal/Resistivity/Temp
* Bi-directional RS232C
* TDS is available by its Factor
Conductivity Meter01
Conductivity Meter02
Conductivity Meter03




* Wide & clear backlit graphic color LCD display

* Fast, accurate and easy to use, Auto hold

* Simultaneous display of EC(Salinity/TDS), temp and current time

* Selectable cell constant, Automatic compensation for Temp
* Alarm displays at high/low limit, Auto ranging

Data-log up to 500 Points, Self diagnostics
* RS232C communication, Built-in printer(Option)

* Certificate CE mark, ISO 9001

* Upload the data in Excel format to PC by RS232C(SDIS-Option)



Conductivity

 Range

 0 to 199,999¥ìS/cm

 Resolution

 0.01 / 0.1 (Auto)

 Relative Accuracy

 ¡¾0.5%

 TDS

 Range

 0 to 1,999mg/L

 Resolution

 1mg/L

 Relative Accuracy

 ¡¾2%

 Salinity

 Range

 0.0 to 80.0ppt

 Resolution

 0.1

 Relative Accuracy

 ¡¾0.1

 Temperature

 Range

 -10 to 110¡É

 Resolution

 0.1¡É

 Relative Accuracy

 ¡¾0.4¡É

 Resistivity

 5§Ù * cm to 100M§Ù * cm

 Temperature Compensation

 Auto

 Calibration

 Auto

 Datalog

 500 Points

 Print Capability

 Yes

 Display

 Color Graphic LCD

 Inputs

 BNC, ATC, Power, RS232C

 Outputs

 RS232C (Computer / Printer)

 Power

 Adaptor

 Certification

 ISO9001, CE mark

 Dimension

 200(L) x 260(W) x 90(H), Weight 0.96kg



(1) Standard
   - Conductivity Cell(K=1.0) / ATC Probe(#5731302-31)
   - Conductivity Standard Solution(1413¥ìS/cm)125ml
   - AC / DC Power Adaptor
   - Instruction Manual


2) Option
   - Conductivity Cell/ATC Probe(K=1.0, K=0.1, K=0.01, K=10)
   - Conductivity Standard Solution
   - RS232C Interface Cable
   - SDIS(Serial Data Interface Software) & RS232C Interface Cable
   - USB Cable for RS232
   - Built-In Printer
   - Exterior Thermal Printer
   - Luxury Third-Arm Stand
