pH/ISE Meter (

Digital pH Meter

)
>> Products >> Digital pH Meter

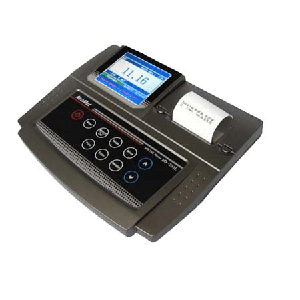

digital ph meter
pH-250L

 * pH/ISE/mV/ORP/Temp
 * Certificated CE Mark
 * Wide Color Graphic LCD

digital ph meter01
digital ph meter02
digital ph meter03




* Wide & clear backlit graphic color LCD display

* Fast, accurate and easy to use, RS 232C communication

* Simultaneous display of pH(mV,ISE), temp and current time

* Auto(Manual) calibration with choice of buffer(3points)

* Automatic compensation for Temp, Alarm sound at high/low limit,

* Available measure by using latest calibration data

* Self diagnostics, Auto-hold, Data-log up to 500 Points

* Certificated CE mark, ISO 9001, Built-in printer (Option)

* Upload the data in Excel format to PC by RS232C cable (SDIS-Option)



pH

  Range

  -2.000 to 19.999

  Resolution

 0.001 / 0.01 / 0.1

  Relative Accuracy

 ¡¾0.002

  Auto-Buffer-Recognition

 4.00, 7.00, 10.00

 Concentration

  Range

 0.0001 to 19999§·/§¤

  Resolution

 ¡¾one least significant

  Relative Accuracy

 ¡¾0.25% of reading

 Temperature

  Range

 -10 to 110¡É

  Resolution

 0.1¡É

  Relative Accuracy

 ¡¾0.4¡É

Millivolts

  Range

 ¡¾1999.9mV

  Resolution

 0.1mV

  Relative Accuracy

 ¡¾0.1mV

 Temperature Compensation

 Auto

 Calibration

 Auto (3 Points) / Manual (3 Points)

 Datalog

 500 Point

 Print Capability

  Yes

 Display

  Color Graphic LCD

 Inputs

  BNC, ATC, Power, RS232C

 Outputs

  RS232C (Computer / Printer)

 Power

  AC/DC Power Adaptor

 Certification

  ISO9001, CE mark

 Dimension

200(L) x 260(W) x 90(H), Weight 0.95kg


(1) Standard
   - Combination pH Glass Body Electrode
   - ATC Probe
   - AC / DC Adaptor
   - Buffer Solution (pH 4.00, 7.00, 10.00)125ml
   - Instruction Manual


(2) Option
   - Electrode Storage Solution
   - Electrode Filling Solution
   - Buffer Solution (pH 4.00, 7.00, 10.00)475ml
   - SDIS(Serial Data Interface Software) & RS232C Interface Cable
   - USB Cable for RS232
   - Built-in Printer
   - Luxury Third-Arm Stand
