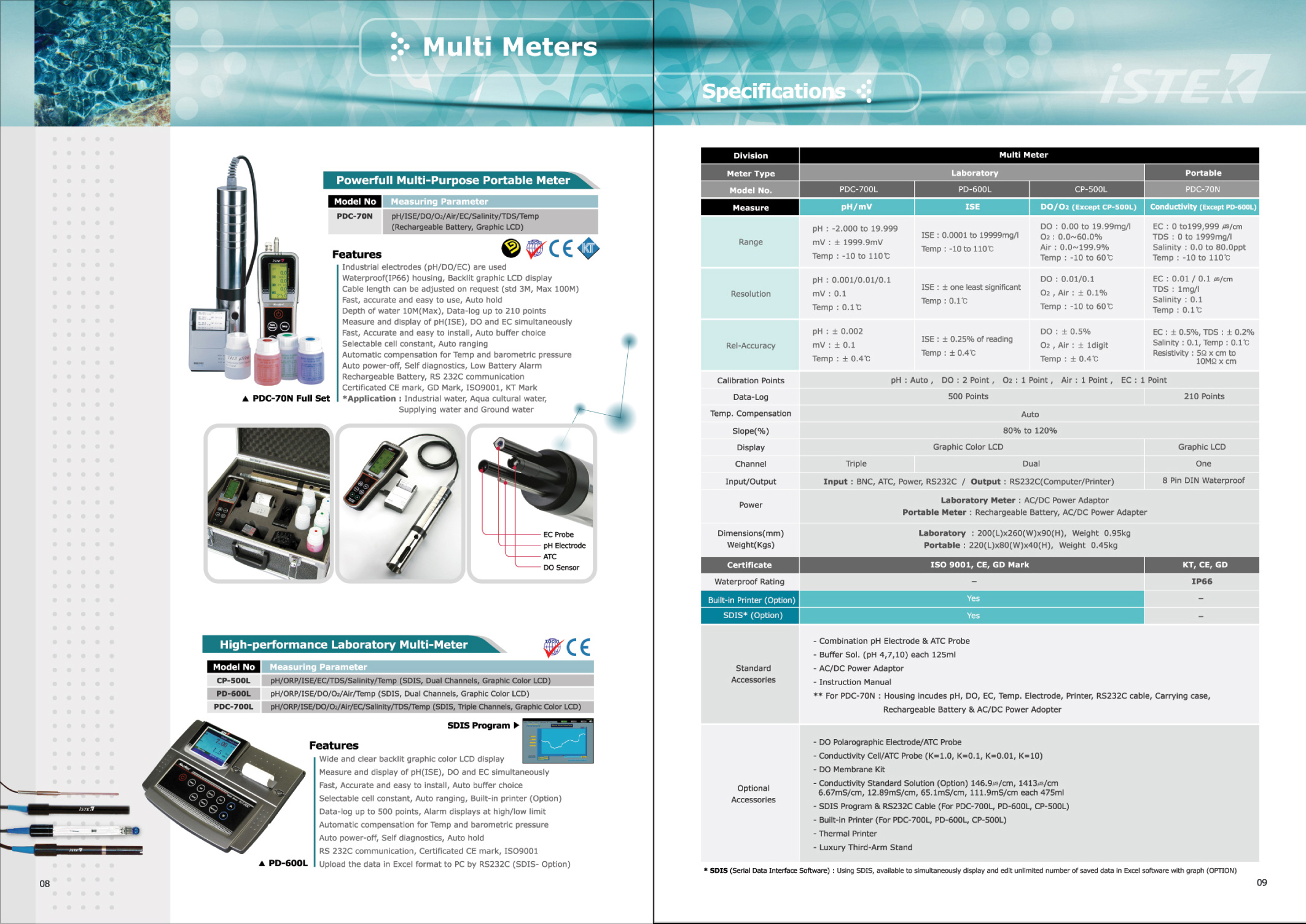

PDC-70N
	* pH/DO/EC Multi Meter * Waterproof IP66 * Measures pH/DO/EC/Temp Simultaneously.

* Industrial electrodes (pH/DO/EC) are used

* Waterproof(IP66) housing, Backlit graphic LCD display

* Cable length can be adjusted on request (Std 3M, Max 100M)

* Fast, accurate and easy to use, Auto hold

* Depth of water 10M(Max), Data-log up to 210 points

* Measure and display of pH(ISE), DO and EC simultaneously

* Fast, Accurate and easy to install, Auto buffer choice

* Selectable cell constant, Auto ranging

* Automatic compensation for Temp and barometric pressure

* Auto power-off, Self diagnostics, Low Battery Alarm

* Rechargeable Battery, RS 232C communication

* Certificate CE mark, GD Mark, ISO9001, KT Mark

Application: Industrial water, Aqua cultural water,

Supplying water and Ground water

pH	Range Resolution Relative Accuracy	-2.000~19.999 0.001/0.01/0.1 ±0.002
Concentration	Range Resolution Relative Accuracy	0.0001~19999mg/L ± one least significant ±0.25% of Reading
Millivolts	Range Resolution Relative Accuracy	±1999.9 0.1 ±0.1mV
DO	Range Resolution Relative Accuracy	0.00~19.99mg/L 0.01/0.1 ±0.5%
O₂	Range Resolution Relative Accuracy	0.0~60.0％ 0.1% ±1 digit
Air Saturation	Range Resolution Relative Accuracy	0.0~199.9％ 0.1% ±1 digit
Conductivity	Range Resolution Relative Accuracy	0 to 199,999μS/cm 0.01/0.1 ±0.5%
TDS	Range Resolution Relative Accuracy	0 to 1999mg/L 1 mg/L ±2％
Salinity	Range Resolution Relative Accuracy	0.0 to 80.0ppt 0.1 ±0.1
Temperature	Range Resolution Relative Accuracy	pH/Ion/EC => 0~110℃ DO => 0~60℃ 0.1℃ ±0.4℃
Temperature Compensation		Auto
Calibration		pH => Auto/Manual(3Point) Ion. DO, EC => Auto
Datalog		210Points
Print Capability		Yes
Display		Graphic LCD
Inputs		8 Pin DIN Waterproof
Outputs		RS232C (Computer/Printer)
Power		Rechargeable Battery DC Power Adaptor
Certification		ISO9001, CE, GD mark
Dimension		220(L) x 80(W) x 40(H), Weight 0.45kg
Waterproof		IP66

(1) Standard Accessories
   - Combination pH Electrode
   - DO Galvanic Electrode
   - Conductivity Electrode(K=1.0)
   - ATC Probe
   - Electrode Housing
   - pH Buffer Solutions (pH4.00,7.00,10.00) 125ml
   - Conductivity Standard Solution(1413 μS/cm) 125ml
   - Exterior Thermal Printer
   - RS232C Interface Cable
   - Rechargeable Battery & DC Power Adaptor
   - Aluminium Carrying Case
   - Instruction Manual

(2) Optional Accessories
   - pH Electrode Storage Solution
   - pH Buffer Solution (pH4.00,7.00,10.00)
   - pH Electrode Filling Solution
   - Conductivity Standard Solution
   - DO Membrane Kit
   - Printer Paper
